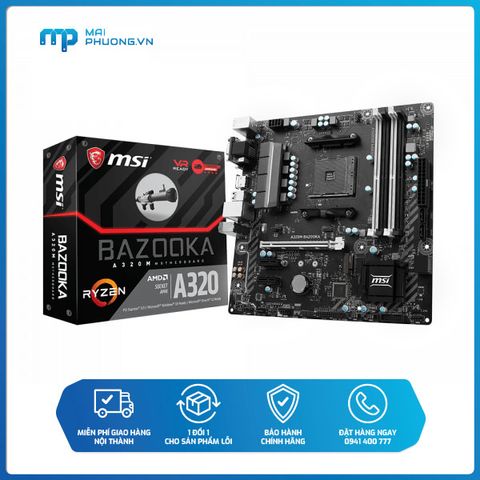

Bo mạch chủ MSI A320M BAZOOKA

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

A320M BAZOOKA

CPU hỗ trợ

AMD

Chipset

A320

RAM hỗ trợ

4 x DDR4 (Tối đa 64GB DDR4 1866/ 2133/ 2400/ 2667Mhz)

Khe cắm mở rộng

1 x PCIe 3.0 x16 slot
2 x PCIe 2.0 x1 slots

Ổ cứng hỗ trợ

AMD^® A320 Chipset

4 x SATA 6Gb/s ports
- Support RAID 0, RAID 1 and RAID 10

1 x M.2 slot (Key M)
- Supports PCIe 3.0 x4 (RYZEN Series Processors) or PCIe 3.0 x2 (7th Gen A-series/ Athlon™ processors ) and SATA 6Gb/s 2242/ 2260 /2280 storage devices

Cổng kết nối (Phía trong)

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 4 x SATA 6Gb/s connectors
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
- 1 x 4-pin CPU fan connector
- 2 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Serial port connector
- 1 x Parallel port connector
- 1 x RGB LED strip connector
- 1 x Clear CMOS jumper

Cổng kết nối (Phía sau)

- 1x PS/2 keyboard/ mouse combo port
- 2x USB 2.0 Type-A ports
- 1x VGA port
- 1x DVI-D port
- 1x HDMI™ port
- 4x USB 3.1 Gen1 Type-A ports
- 1x LAN (RJ45) port
- 3x audio jacks

LAN / Wireless

1 x Realtek^® 8111H Gigabit LAN controller

Kích cỡ

Micro-ATX Form Factor

9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
