Thông tin sản phẩm:

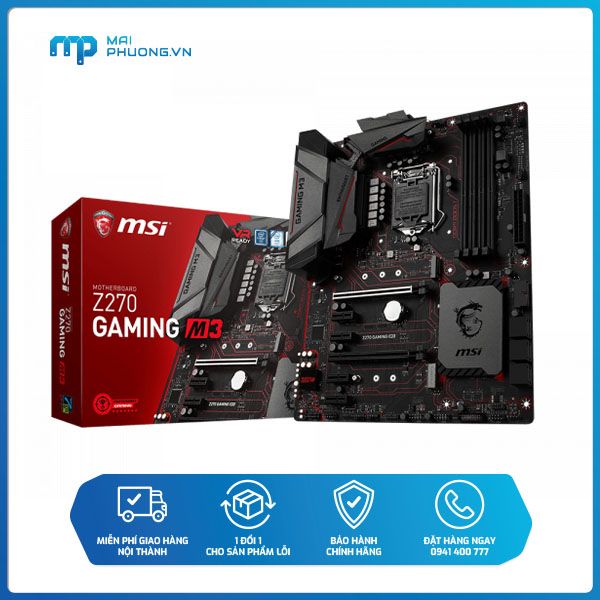

+ Intel® Z270 Chipset
+ Socket LGA1151
+ 4xDDR4 Max 64GB
+ DirectX 12, 2-Way AMD CrossFire
+ Realtek® ALC1220 Codec
+ Killer™ E2500 Gigabit LAN controller
+ 2xPCI-Ex16, 4xPCI-Ex1, 6xSata3
- Hỗ trợ các bộ vi xử lý Intel® Core™ / Pentium® / Celeron® thế hệ 7th / 6th socket LGA 1151
- Hỗ trợ bộ nhớ DDR4-3866+(OC)
- DDR4 Boost và Steel Armor: Tăng tốc bộ nhớ và cải thiện hiệu năng DDR4 của bạn
- VR Ready và VR Boost: Trải nghiệm game thực tế ảo mượt mà, không gây ảo giác
- Mystic Light và Mystic Light Sync: Đồng bộ hóa các giải pháp RGB của hệ thống máy tính và điều khiển các đèn LED chỉ với một cú nhấn
- Hai cổng Turbo M.2, Steel Armor, M.2 Shield. Intel Optane Memory Ready, Turbo U.2, Lightning USB 3.1 Gen2
- Audio Boost 4 với Nahimic 2: Tưởng thưởng đôi tai của bạn với chất lượng âm thanh như trong phòng thu và các trải nghiệm game tốt nhất
- GAMING LAN với LAN Protect, được phát triển bởi Killer™: Trải nghiệm game trực tuyến tốt nhất với độ trễ thấp nhất và quản lý băng thông tốt
- Military Class 5, Guard-Pro: Đẳng cấp tuyệt vời với chất lượng cao cấp của các linh kiện đem lại hiệu năng và độ an toàn cao nhất
- ĐA-GPU: Với khe PCI-E Steel Armor. Hỗ trợ AMD Crossfire™
- Các vũ khí hỗ trợ cho game: Game Boost, GAMING Hotkey, X-Boost,
- Đèn LED EZ Debug: Phát hiện lỗi dễ dàng nhất
- Click BIOS 5: BIOS giành được nhiều giải thưởng với các font chữ độ phân giải cao, lựa chọn mục yêu thích và tính năng tìm kiếm
- CHỨNG NHẬN GAMING: Chơi game liên tục 24 giờ cho cả offline lẫn online và được kiểm chứng bởi các game thủ Thể thao điện tử
CPU:
Supports 6th/ 7th Gen Intel® Core™ i3/i5/i7 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151
Chipset:
Intel® Z270 Chipset
Khe Ram:
2 x DDR4 memory slots, support up to 32GB
7th Gen processors support DDR4 2400/ 2133 MHz*
6th Gen processors support DDR4 2133 MHz*
Dual channel memory architectureKhe cắm mở rộng:
2 x PCIe 3.0 x16 slots (supports x16/x4 mode)*
4 x PCIe 3.0 x1 slotsĐồ họa Onboard:
1 x HDMI™ port, supports a maximum resolution of 4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU), 2560x1600@60Hz
1 x DVI-D port, supports a maximum resolution of 1920x1200@60HzLưu trữ:
Intel® Z270 Chipset
6 x SATA 6Gb/s ports*
2x M.2 slots (Key M)
Support up to PCIe 3.0 x4 and SATA 6Gb/s
Support PCIe 3.0 x4 NVMe U.2 SSD with Turbo U.2 Host Card**
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage devices
M2_2 slot supports 2242/ 2260 /2280 storage devices
Intel® Optane™ Memory Ready for all M.2 slots
Supports Intel® Smart Response Technology for Intel Core™ processors (optional)RAID (optional):
Supports RAID 0, RAID1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID1 for M.2 PCIe storage devices*USB:
ASMedia® ASM2142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-C port on the back panel
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
Intel® Z270 Chipset
- 8 x USB 3.1 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB connector)
- 6 x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connector)Multi-GPU:
Supports 2-Way AMD® CrossFire™ Technology
Audio:
Realtek® ALC1220 Codec
7.1-Channel High Definition Audio
Supports S/PDIF outputLAN:
1 x Killer™ E2500 Gigabit LAN controller
I/O Kết nối trong:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
6 x SATA 6Gb/s connectors
2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1 x 4-pin CPU fan connector
1 x 4-pin water pump fan connector
4 x 4-pin system fan connectors
1 x Front panel audio connector
2 x Front panel connectors
1 x LED connector
1 x TPM module connector
1 x Chassis Intrusion connector
1 x Serial connector
1 x Clear CMOS jumperI/O Kết nối phía sau:
1 x PS/2 keyboard/ mouse combo port
2 x USB 2.0 Type-A ports
1 x DVI-D port
1 x USB 3.1 Gen2 Type-A port
1 x USB 3.1 Gen2 Type-C port
4 x USB 3.1 Gen1 Type-A ports (optional)
1 x HDMI™ port
1 x LAN (RJ45) port
5 x OFC audio jacks
1 x Optical S/PDIF OUT connectorKích thước:
12 in. x 9.6 in. (30.4 cm x 24.3 cm)
ATX Form FactorMounting:
9 mounting holes
