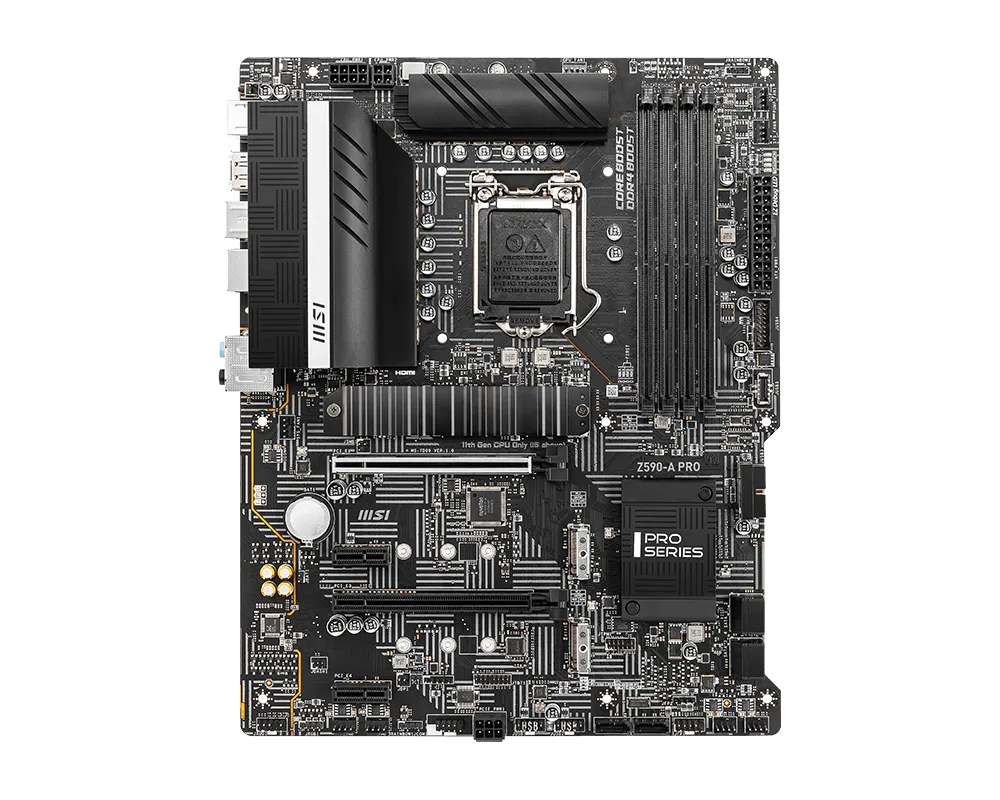

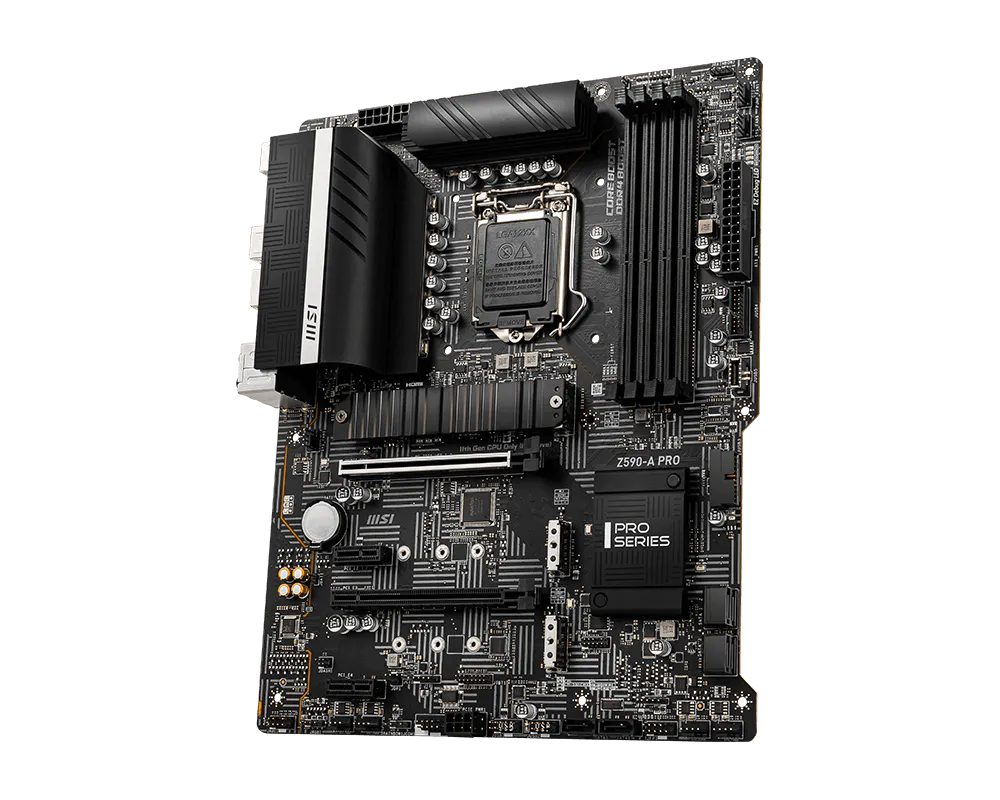

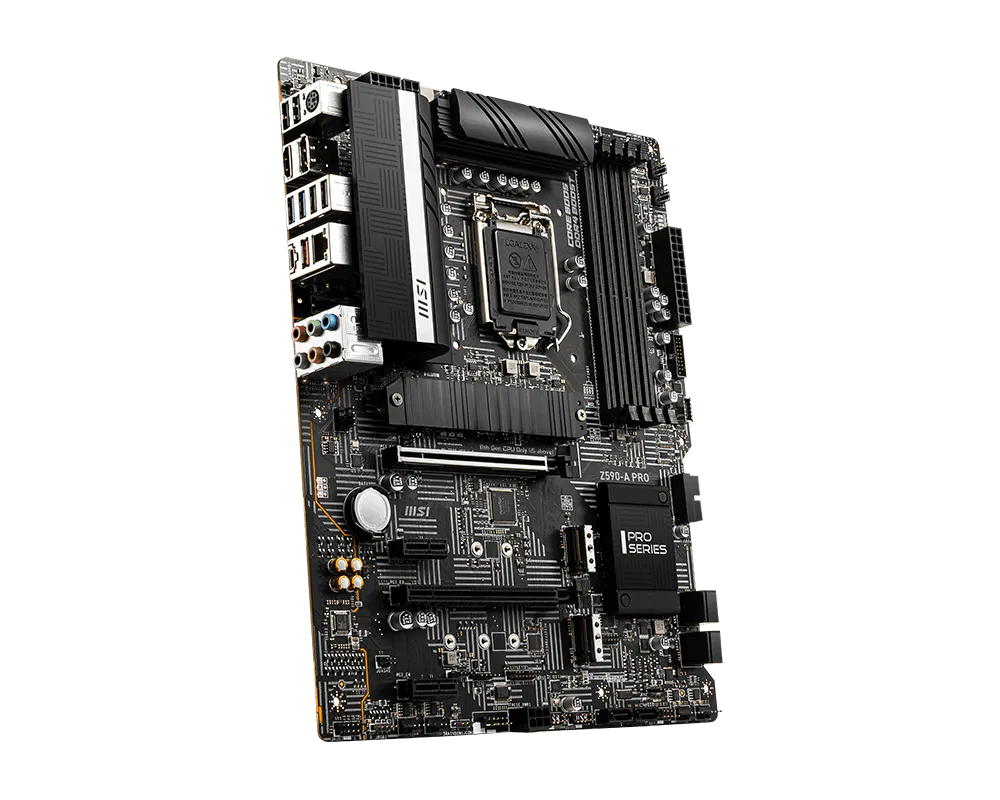

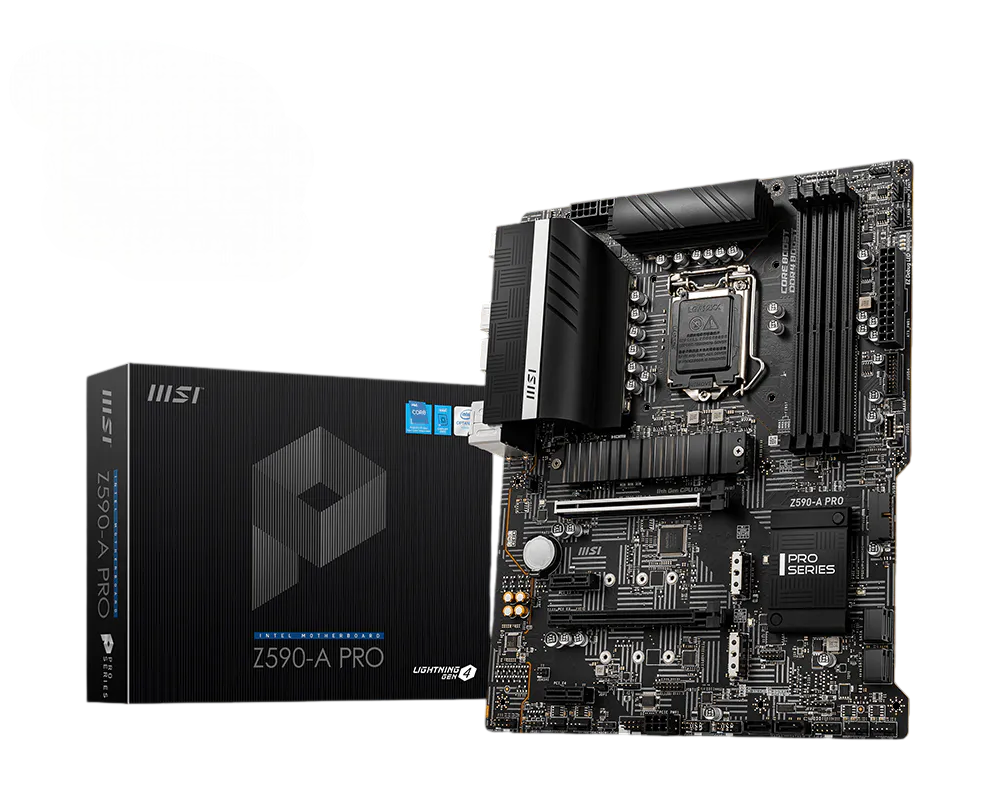

Mainboard MSI Z590-A PRO DDR4

Tên Hãng

MSI

Model

Z590-A PRO

CPU hỗ trợ

Intel

Chipset

Z590

RAM hỗ trợ

4x DDR4 memory slots, support up to 128GB
Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)
Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)
Max overclocking frequency:
1DPC 1R Max speed up to 5333 MHz
1DPC 2R Max speed up to 4700+ MHz
2DPC 1R Max speed up to 4400+ MHz
2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)

Khe cắm mở rộng

2x PCIe x16 slots
Support x16/ x4
PCI_E1 (from CPU)
Supports up to PCIe 4.0 for 11th Gen Intel® CPU
Supports up to PCIe 3.0 for 10th Gen Intel® CPU
PCI_E3 (from Z590 chipset)
Supports up to PCIe 3.0
2x PCIe 3.0 x1 slots (from Z590 chipset)

Ổ cứng hỗ trợ

6x SATA 6Gb/s ports (from Z590 chipset)
3x M.2 slots (Key M)
M2_1 slot (from CPU)
Available only on 11th Gen Intel® CPU
Supports up to PCIe 4.0x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_21, M2_32 slots (from Z590 chipset)
Support up to PCIe 3.0x4
Support up to SATA 6Gb/s
Support 2242/ 2260/ 2280 storage devices

Cổng kết nối (Internal)

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
1x 6-pin ATX PCIe power connector
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
6x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x Serial port connector
1x Tuning controller connector
1x TBT connector (Supports RTD3)

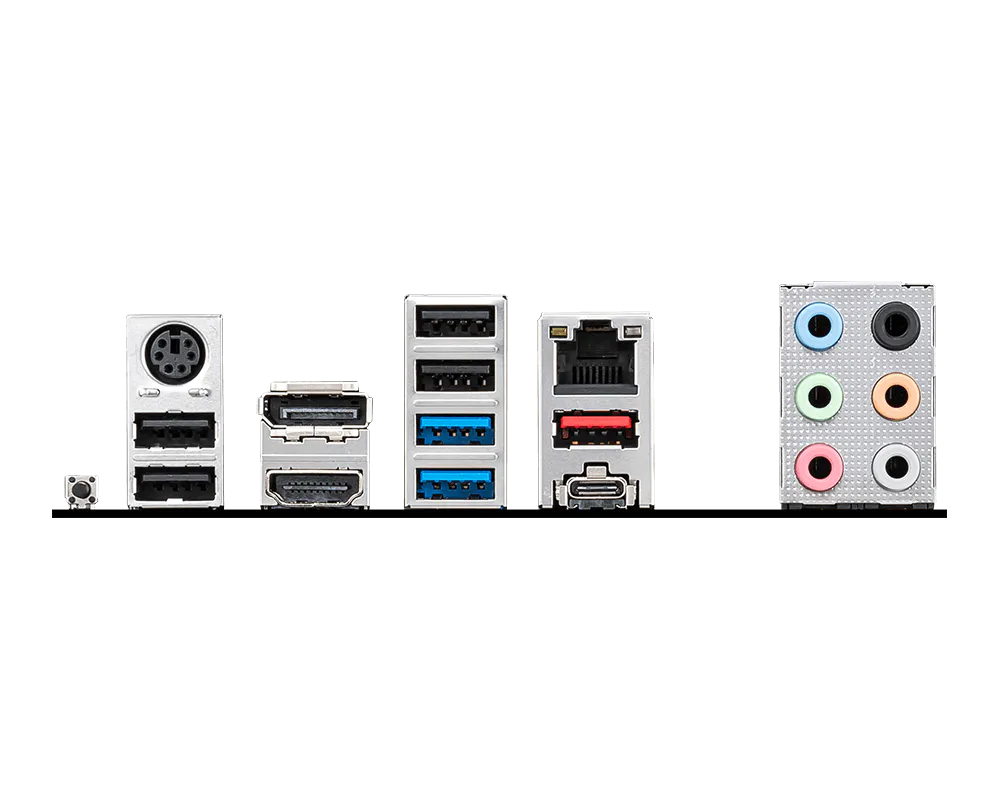

Cổng kết nối (Back Panel)

1 x HDMI
1 x LAN port
1 x Audio connector
4 x USB 2.0
1 x DP
1 x PS2
2 x USB 3.2 Gen 1 5Gbps Type A
1 x USB 3.2 Gen 2 10Gbps Type A
1 x USB 3.2 gen 2x2 20Gbps Type c


LAN / Wireless

1x Intel® I225V 2.5Gbps LAN controller

Kích cỡ

ATX Form Factor
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
