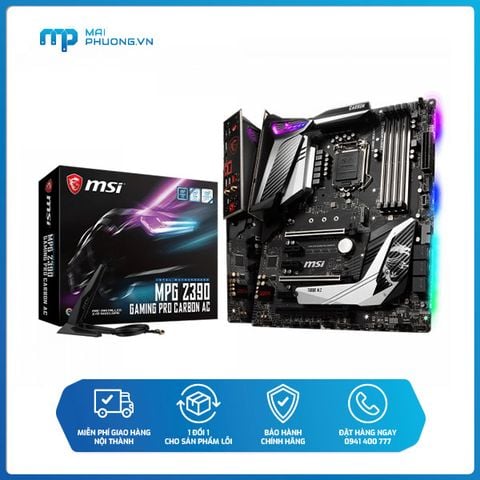

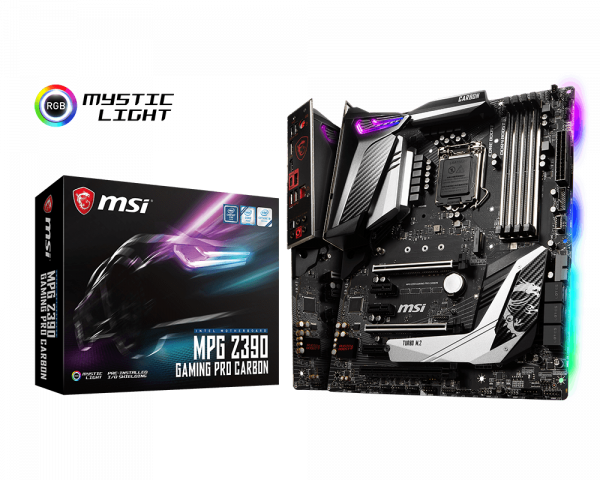

Bo mạch chủ MSI Z390 GAMING PRO CARBON

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

MPG Z390 GAMING PRO CARBON

CPU hỗ trợ

Intel

Chipset

Z390

RAM hỗ trợ

4 x DDR4 memory slots, support up to 64GB
Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz

Khe cắm mở rộng

3 x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
3 x PCIe 3.0 x1 slots

Ổ cứng hỗ trợ

6 x SATA 6Gb/s ports
2 x M.2 slot (Key M)

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
1x 4-pin ATX 12V power connector
6x SATA 6Gb/s connectors
1x USB 3.1 Gen2 Type-C port
2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin Water Pump connector
5x 4-pin system fan connectors
1x Serial port connector
1x Front panel audio connector
2x System panel connectors
1x Thunderbolt Add-on Card Connector
1x Chassis Intrusion connector
1x TPM module connector
2x 4-pin RGB LED connectors
1x 3-pin RAINBOW LED connector
1x 3-pin CORSAIR LED connector

Cổng kết nối (Back Panel)

PS/2 Combo Port
LAN
HD Audio Connectors
USB 2.0
DisplayPort
HDMI
USB 3.1 Gen2 Type-A + C
USB 3.1 Gen2 Type-A
Optical S/PDIF out

LAN / Wireless

1 x Intel^® I219-V Gigabit LAN controller

Kích cỡ

9.6 in. x 12 in. (24.3 cm x 30.4 cm)
ATX Form Factor
