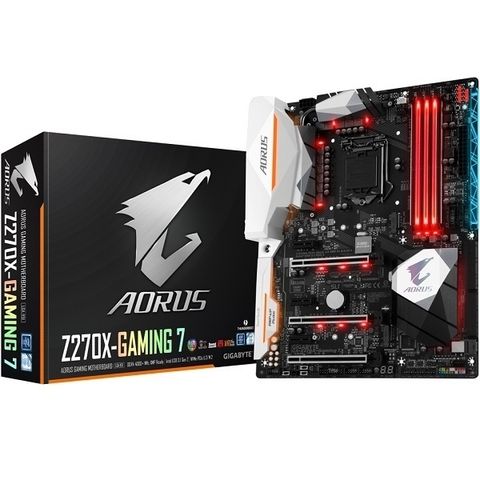

Mainboard Gigabyte GA-Z270X-Gaming 7

6,460,000₫
Sản phẩm vừa xem
Thông tin sản phẩm:
+ Chipset Intel® Z270
+ Socket LGA1151
+ 4xDDR4 Max 64GB
+ Intel HD Graphics
+ Creative® Sound Core 3D chip
+ 1 x Intel® GbE LAN chip
+ 1 x Killer E2500 LAN chip
+ 6PCIE/9SATA/2M.2/1U.2

Thông số sản phẩm
  • CPU:

    Support for 7th and 6th generation Intel® Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™ i3 processors/ Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    ​L3 cache varies with CPU

  • Chipset:

    Intel® Z270 Express Chipset

  • Bộ nhớ:

    4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
    Dual channel memory architecture
    Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules

  • Đồ họa tích hợp:

    Integrated Graphics Processor+Intel® Thunderbolt™ 3 Controller:
    1 x Intel® Thunderbolt™ 3 connector, supporting DisplayPort and Thunderbolt™ video outputs and a maximum resolution of 4096x2304@60 Hz
    * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 1-7, "Back Panel Connectors," for more information.)
    * Support for DisplayPort 1.2 version.
    Integrated Graphics Processor-Intel® HD Graphics support:
    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
    * Support for DisplayPort 1.2 version.
    1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
    * Support for HDMI 1.4 version. Support for up to 3 displays at the same time Maximum shared memory of 1 GB

  • Khe cắm mở rộng:

    1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    1 x PCI Express x16 slot, running at x8 (PCIEX8)
    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
    1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the M2P_32G connector. The PCIEX4 slot operates at up to x2 mode when an SSD is installed in the M2P_32G connector.
    3 x PCI Express x1 slots
    * The PCIEX1_3 slot shares bandwidth with the SATA3 1 connector. The SATA3 1 connector becomes unavailable when the PCIEX1_3 is populated.
    (All of the PCI Express slots conform to PCI Express 3.0 standard.)

  • Giao diện lưu trữ

    Chipset:
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G)
    1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G)
    1 x U.2 connector
    3 x SATA Express connectors
    6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-10 Internal Connectors," for the installation notices for the PCIEX4, M.2, and SATA connectors.

  • LAN:

    1 x Intel® GbE LAN chip (10/100/1000 Mbit)(LAN1)
    1 x Killer E2500 LAN chip (10/100/1000 Mbit) (LAN2)
    * Teaming is not supported.

  • Âm Thanh:

    Creative® Sound Core 3D chip
    Support for Sound Blaster Recon3Di
    TI Burr Brown® OPA2134 operational amplifier
    High Definition Audio
    2/5.1-channel
    Support for S/PDIF Out

  • USB:

    Chipset+Intel® Thunderbolt™ 3 Controller:
    1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
    1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
    Chipset+Realtek® USB 3.1 Gen 1 Hub:
    4 x USB 3.1 Gen 1 ports (available through the internal USB headers)
    Š Chipset:
    5 x USB 3.1 Gen 1 ports on the back panel
    4 x USB 2.0/1.1 ports (available through the internal USB headers)

  • Tính năng duy nhất:

    Support for APP Center
    * Available applications in APP Center may vary by motherboard model.
    Supported functions of each application may also vary depending on motherboard specifications.
    3D OSD
    @BIOS
    AutoGreen
    BIOS Setup
    Color Temperature
    Cloud Station
    EasyTune
    Easy RAID
    Fast Boot
    Game Boost
    ON/OFF Charge Platform Power Management
    RGB Fusion
    Smart Backup
    Smart Keyboard
    Smart TimeLock
    System Information Viewer
    USB Blocker
    USB DAC-UP 2
    V-Tuner
    Support for 3TB+ Unlock
    Support for Q-Flash
    Support for Xpress Install

  • Cổng I/O phía sau:

    1 x PS/2 keyboard/mouse port
    1 x DisplayPort
    1 x HDMI port
    1 x Thunderbolt™3 port (USB Type-C™ port, with USB 3.1 Gen 2 support)
    1 x USB 3.1 Gen 2 Type-A port (red)
    5 x USB 3.1 Gen 1 ports
    2 x RJ-45 ports
    1 x optical S/PDIF Out connector
    5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)

  • Cổng I/O ở trong:

    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x U.2 connector
    2 x M.2 Socket 3 connectors
    3 x SATA Express connectors
    6 x SATA 6Gb/s connectors
    1 x CPU fan header
    1 x water cooling CPU fan header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    1 x front panel header
    1 x front panel audio header
    2 x USB 3.1 Gen 1 headers
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module (TPM) header
    1 x RGB (RGBW) LED strip extension cable header
    1 x Thunderbolt™ add-in card connector
    1 x Clear CMOS jumper
    2 x temperature sensor headers
    1 x power button
    1 x reset button
    1 x Clear CMOS button
    1 x ECO button
    1 x OC button
    1 x audio gain control switch Voltage Measurement Points
    2 x BIOS switches

  • Gói phần mềm:

    Norton® Internet Security (OEM version)
    Intel® Optane™ Memory Ready

  • BIOS:

    2 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    Support for DualBIOS™
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

  • Điều khiển I/O:

    iTE® I/O Controller Chipe cắm

  • Hệ điều hành:

    Windows® 10 64-bit (for 7th Generation Intel® Processors)
    Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
    * Please download the "Windows USB Installation Tool" from GIGABYTE"s website and install it before installing Windows 7.

  • Hệ số khuôn​​:

    ATX Form Factor; 30.5cm x 24.4cm

  • Theo dõi phần cứng:

    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.

  • Kèm trong hộp​​:

    GA-Z270X-Gaming 7 motherboard
    Motherboard driver disk
    User"s Manual
    Quick Installation Guide
    Four SATA cables
    I/O Shield
    One GC-SLI2P bridge connector
    One G Connector
    One pack of back I/O dust cover
    One RGB (RGBW) LED strip extension cable
    Two velcro cable ties Two thermistors cables

  • Công nghệ đa card đồ họa​:

    Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
    Support for AMD Quad-GPU CrossFireX™ and 3-Way/2-Way AMD CrossFire™ technologies
